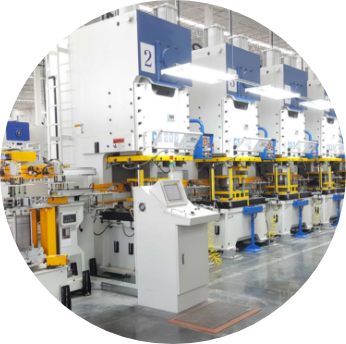

IMT-LINE
Outstanding circle interpolation through servo 2~4 axis motion control High productivity through interlock system with press
| SPEC | Unit | IMT-200 | IMT-240 | IMT-260 | IMT-280 |
| X-AXIS(FEED) TRANSFER DISTANCE | mm | ~1,000 | ~1,200 | ~1,300 | ~1,400 |
| Z-AXIS(LIFT) TRANSFER DISTANCE | mm | ~120 | ~120 | ~120 | ~120 |
| Material Weight | kg | ~3.5kg | ~5.0kg | ~6.0kg | ~7.0kg |
| CLAMP | VACUUM OR MAGNET | ||||

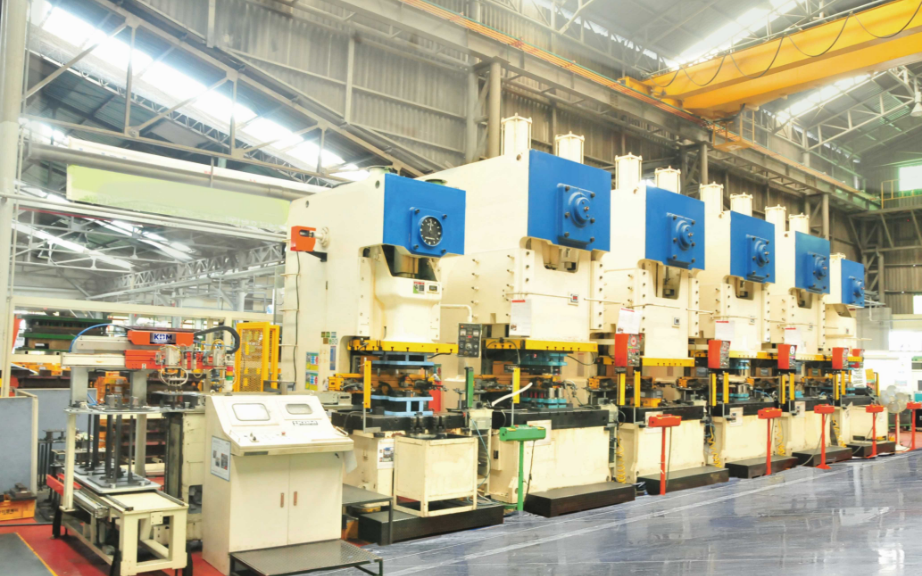

* Tendem line is operated with press in asynchronous mode (Synchronous mode is possible according to press conditions)
Possible to stack a large quantity of sheets
Automatic stage changes
Suitable for mass production of multi items
| Stacking Stage | 4~6 |
|---|---|
| Stacking Weight | 500kg/1 Stage(Max. 2,000kg) |
| Lift | Hyd’ or Geared Motor |
| Lift Weight | Max. Motor 500kg |
| Max. Hyd’ 2,000kg |
Suitable for mid-sized materials
Automatic stage change
Suitable for mass production of limited items
| Stacking Stage | Max. 10 |
|---|---|
| Stacking Weight | 500kg/1 Stage(Max. 2,000kg) |
| Lift | Hyd’ or Geared Motor |
| Lift Weight | Max. Motor 500kg |
| Max. Hyd’ 2,000kg |
Suitable for large-sized materials and heavy weights
Automatic stage change
Suitable for large-sized BLK' and sheet materials
| Stacking Stage | 2 |
|---|---|
| Stacking Weight | 2,500kg/1 Stage(Max. 5,000kg) |
| Lift | Hyd’ |
| Lift Weight | Max. Motor 500kg |
| Max. Hyd’ 10,000kg |
