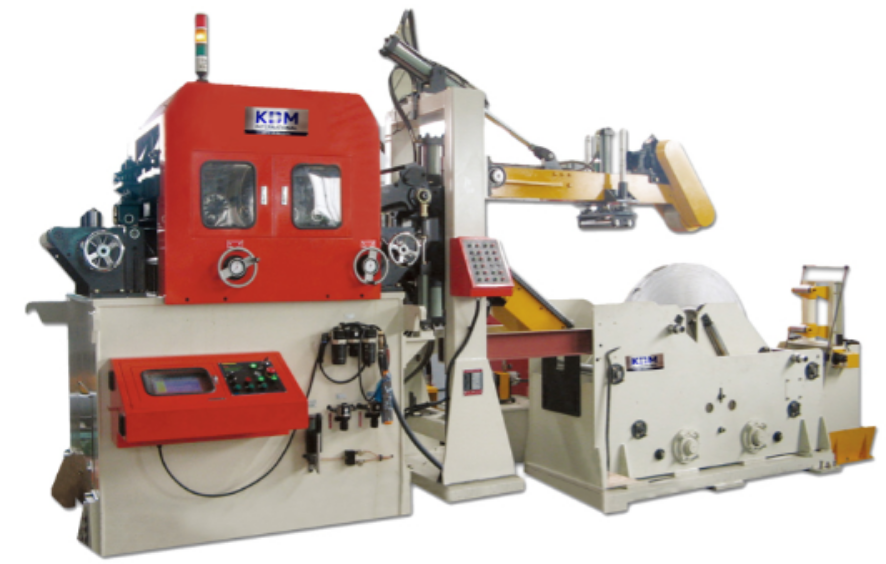

Cradle
Inserting materials only by UP-LOOP method Coil materials can be easily mounted by putting them into the cradle Inserting device and loop table applied to facilitate the insertion of coils in the initial stage Possible to adjust the cradle according to material widths
CRADLE LINE SPECIFICATION
| CRADLE-MODEL | ||||||
| Unit | 300-500 | 600-800 | 900-1200 | 1300-1500 | 1600-1800 | |
| THICKNESS | mm | 1.5~14.0 | ||||
| COIL WIDTH | mm | 200~600 | ||||
| COIL OUT DIA | mm | Max. 2,000 | ||||
| FEEDING LENGTH | mm | Max Input Value 9999.99 | ||||
| LINE SPEED | m/min | 20 | ||||

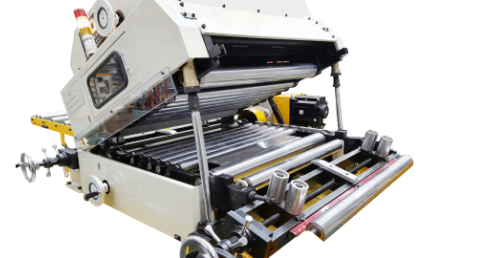

Easy to clean rolls by opening work rolls
For MG/SL models only

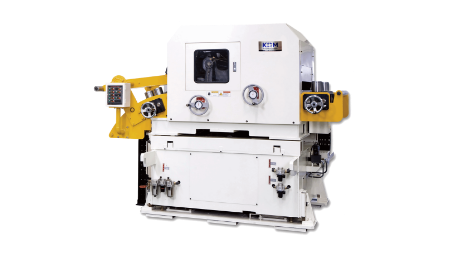

Leveller feeders move from side to side to perform multiple processes of circular blanks
Used to cut the front or end part of coils when recoiling
Hydraulically driven
Possible to prevent uncoiler from sagging when using materials of
more than 1,200㎜ｘ10Ton

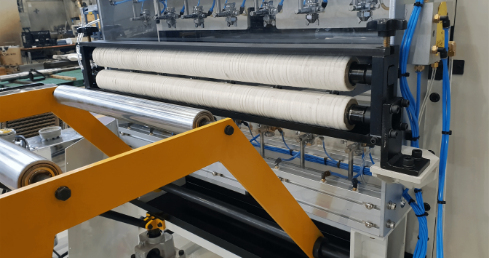

Semi automatic types: Oil injection according to timer setting
Automatic types: Oil injection according to timer setting, oil reuse through recycling system

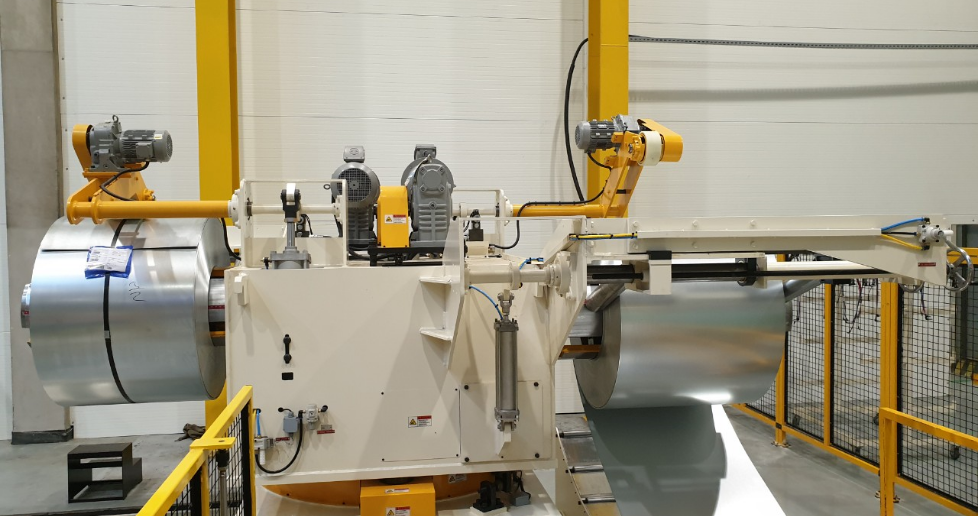

The type is composed of two uncoilers and can reduce working time of coil replacement in advance by installing coil in another uncoiler waiting for next operation
Operated by servo motors
For same operations, automatic setting is possible after memorizing the amount of levelling adjustment for each coil
