IMT-SEMI

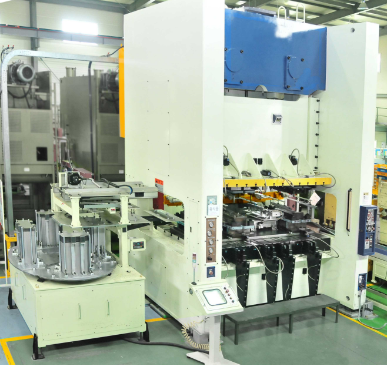

Multiple processes are possible on a single press High productivity through interlock system with press Speed improvement by controlling curve line in transfer section
| SPEC | Unit | SMT-300 | SMT-500 | SMT-700 | SMT-1000 |
| X-AXIS(FEED) TRANSFER DISTANCE | mm | ~300 | ~500 | ~700 | ~1,000 |
| Z-AXIS(LIFT) TRANSFER DISTANCE | mm | ~120 | ~120 | ~120 | ~120 |
| Material Weight | kg | ~2.0kg | ~3.0kg | ~4.0kg | ~5.0kg |
| CLAMP | VACUUM OR MAGNET | ||||
*Synchronous mode with a press is possible to all models *All model operations can be converted to asynchronous mode
Possible to stack a large quantity of sheets
Automatic stage changes
Suitable for mass production of multi items
| Stacking Stage | 4~6 |
|---|---|
| Stacking Weight | 500kg/1 Stage(Max. 2,000kg) |
| Lift | Hyd’ or Geared Motor |
| Lift Weight | Max. Motor 500kg |
| Max. Hyd’ 2,000kg |
Suitable for mid-sized materials
Automatic stage change
Suitable for mass production of limited items
| Stacking Stage | Max. 10 |
|---|---|
| Stacking Weight | 500kg/1 Stage(Max. 2,000kg) |
| Lift | Hyd’ or Geared Motor |
| Lift Weight | Max. Motor 500kg |
| Max. Hyd’ 2,000kg |
Suitable for large-sized materials and heavy weights
Automatic stage change
Suitable for large-sized BLK' and sheet materials
| Stacking Stage | 2 |
|---|---|
| Stacking Weight | 2,500kg/1 Stage(Max. 5,000kg) |
| Lift | Hyd’ |
| Lift Weight | Max. Motor 500kg |
| Max. Hyd’ 10,000kg |
