NC LEVELLER FEEDER LINE

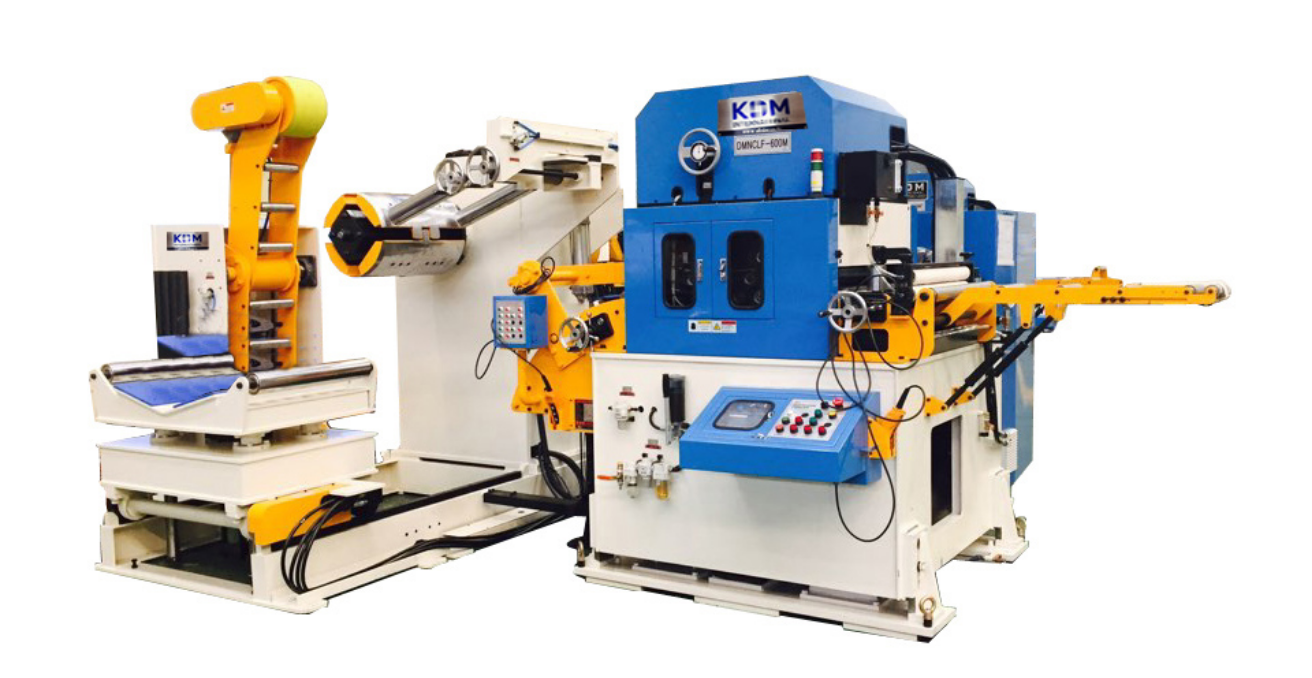

MG-MODEL

Easy to realize a precise flatness for high tensile steel plates Strengthened electric power by applying hydraulic pressure on work rolls and feed rolls Mechanical-brakes for absorbing inertia in the uncoiler and caliper brakes applied Possible to prevent coil from twisting by applying uncoiler/opener inverter controls

SPECIFICATIONS

MG LINE SPECIFICATION

SPECIFICATIONS-MG LINE SPECIFICATION을 나타내는 표입니다.
MG-MODEL
Unit 300MG-500MG 600MG-800MG 900MG-1200MG 1300MG-1500MG 1600MG-1800MG
THICKNESS mm 0.6~6.0
COIL WIDTH mm 100~500 100~800 100~1,200 100~1,500 100~1,800
COIL OUT DIA mm 1,500(2,000)
COIL WEIGHT Kg 5,000~20,000
FEEDING LENGTH mm Max Input Value 9999.99
LINE SPEED m/min 22

MG Levelling correction capability Based on tensile strength of : 50kgf/㎜ 2

SPECIFICATIONS-MG Levelling correction capability를 나타내는 표입니다.
300MG 400MG 500MG 600MG 700MG 800MG 900MG 1000MG 1200MG 1400MG 1600MG 1800MG
LEVELLER ROLL
LENGTH(mm)
330 430 530 630 730 830 930 1,030 1,230 1,430 1,630 1,830
THICKNESS
(mm)
0.8~1.6 250 350 450 550 650 750 850 950 1,150 1,350 1,550 1,750
1.8 860 860 860 860 860
2.0 740 730 700 700 700 700 700
2.3 700 670 640 640 640 640 640
2.8 630 580 530 530 530 530 530
3.2 570 510 450 370 370 370 370 370
4.0 430 400 380 350 350 250 250 250 250
4.5 310 290 290 250 250 230 200 200 200
6.0 200 200 190 190 170 170 150 130

MEDIA

OPTION

  • WORK ROLL OPEN

    Easy to clean rolls by opening work rolls
    For MG/SL models only

    WORK ROLL OPEN
  • ZIGZAG SYSTEM

    Leveller feeders move from side to side to perform multiple processes of circular blanks

    ZIGZAG SYSTEM
  • END SHEARING

    Used to cut the front or end part of coils when recoiling
    Hydraulically driven

    END SHEARING
  • DRUM SUPPORT

    Possible to prevent uncoiler from sagging when using materials of
    more than 1,200㎜x10Ton

    DRUM SUPPORT
  • OILER

    Semi automatic types: Oil injection according to timer setting
    Automatic types: Oil injection according to timer setting, oil reuse through recycling system

    OILER
  • DOUBLE UNCOILER

    The type is composed of two uncoilers and can reduce working time of coil replacement in advance by installing coil in another uncoiler waiting for next operation

    OILER
  • WORK ROLL SERVO UP/DOWN

    Operated by servo motors
    For same operations, automatic setting is possible after memorizing the amount of levelling adjustment for each coil
